Cheapest GPS Tracker G17H With GT06 Protocol For Car Olny 8.7 to 15 USD
Car GPS Tracker Features:
G17H parameters
G-sensor : BS250E
input power: 9-90V
power IC: SL3036H
GSM module: MT6261
GPS module: TD1030
built-in battery
support ACC ignition checking ,
support Relay for cutting off the power/fuel
built-in GPS antenna: 18*18*4 mm
Real time tracking.
Geo-fence, over speed alarm, main power off alarm, vibration alarm.
Demo:
www.zcbgps.com
User:zijiche
Password: 123456
Command list part1
Cheapest GPS Tracker G17H With GT06 Protocol For Car Olny 8.7 to 15 USD
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI:135790246811200 |
| IMEI,135790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gw.carhere.net,8005,0# | Set domain name | ok |
| Server,0,120.24.248.12,8005,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
Command list part 2
Cheapest GPS Tracker G17H With GT06 Protocol For Car Olny 8.7 to 15 USD
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D, | |
| 10 | Check SOS Number | SOS# | |
| 11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
| 12 | Del Center number | CENTER,D# | |
| 13 | Set heartbeat data upload time interval | HBT,T1,T2#
T1=1～300minutes ACC ON heartbeat data upload time interval
T2=1～300minutes, ACC OFF heartbeat data upload time interval | |
11. Support Android APP and Iphone APP Tracking
Applications Of Car GPS Tracker Product.
1. Motorcycle and Motorbike
2. Bus
3. Car
4. Truck
Car GPS Tracker V2C Details:
1. GPS Tracker GPS Chip: Ublox Chip
2. GPS Tracker GSM Chip: MTK Chip
3. Tracker GPS Sensitivity: -159dBm
4. Tracker GPS Accuracy: 5 to 30 meters
5. Tracker Wide Input Voltage: DC9V to DC 80V
6. V2C Tracker Band: Full Band 850MHz 900MHz 1800MHz 1900MHz
7. V2C Tracker Size: 67mm*33.8mm*11.5mm
8. V2C Tracker Weight: 35g

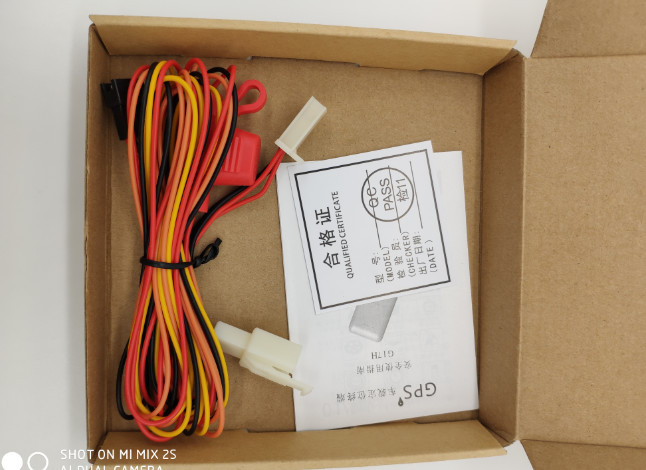

Car GPS Tracker Accessories:

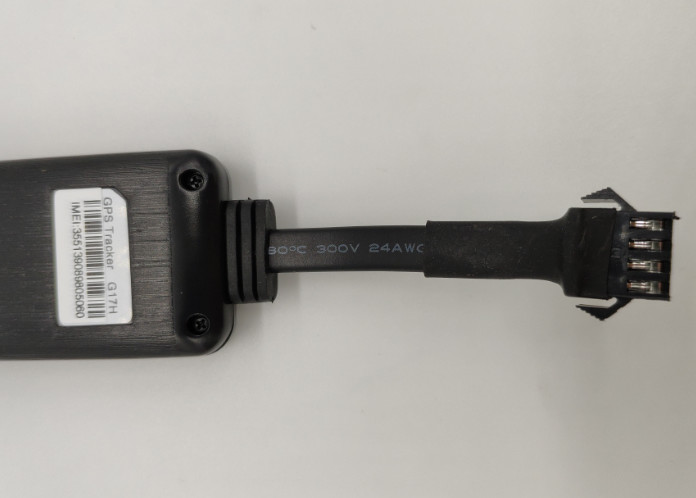

1. GPS Tracker Device

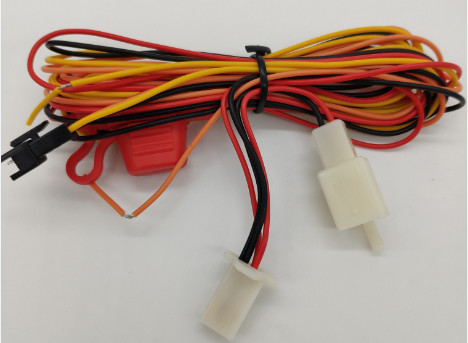

2. Power cable with Four line
3. GPS Tracker Manual
4. Relay is optional
5. 3M Sticker
6. Color Box
The GPS locator is a terminal with a built-in GPS module and a mobile communication module, and is used for transmitting the positioning data obtained by the GPS module to a server on the Internet through a mobile communication module (gsm/gprs network), thereby being implemented on a computer or Query the terminal location on the phone. [1-2]
The GPS positioning device installed in the car is basically divided into two types, magnetic and wire connection. The magnetic body is basically composed of a built-in battery and a strong magnet. The advantage is that the installation is convenient, and the magnet is adsorbed in any place of the car body casing. The disadvantage is that the battery is used. Subject to limitations, there will always be no electricity. The other is the wire connection, which is directly connected to the power line of the car.
Cheapest GPS Tracker G17H With GT06 Protocol For Car Olny 8.7 to 15 USD
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
Warranty
1. All products have been strictly Quality Checked in house before packing. 2. All products have been well packed before shipping. 3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
