Black GSM Mini Motorybike GPS Tracker SOS Alert Voice Monitoring With Relay
Performance Parameters:
| Content | Specs. |
| Dim. | 94mm x 45mm x 14mm |
| Weight | 85g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS chip | UBLOX |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 35-80s Warm status 35s Hot status 1s |
| voltage input | 9－75V input |
| Battery | Build-in 3.7V 200mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
Description:
- Mini Car GPS Tracker GSM four frequency(GSM850/900/1800/1900MHZ) system global general;
- Mini Car GPS Tracker built-in switching power supply, exceed wide voltage input range: 9-75 VDC;
- Mini Car GPS Tracker GPS continuous GPS positioning, GPRS report regularly;
- Mini Car GPS Tracker Support SMS message to check the location info;
- built-in vibration sensor, realization vehicle anti-theft intelligently;
- ACC the ignition signal detection,vehicle status prompted;
- can be set up a hotline number for SOS call the police and security alarm; (optional)
- can connect external SOS alarm button for emergency calls for help(optional)
- can connect external microphone, to realize the remote voice surveillance function;
- built-in backup battery, realize the illegal cut the line alarm;

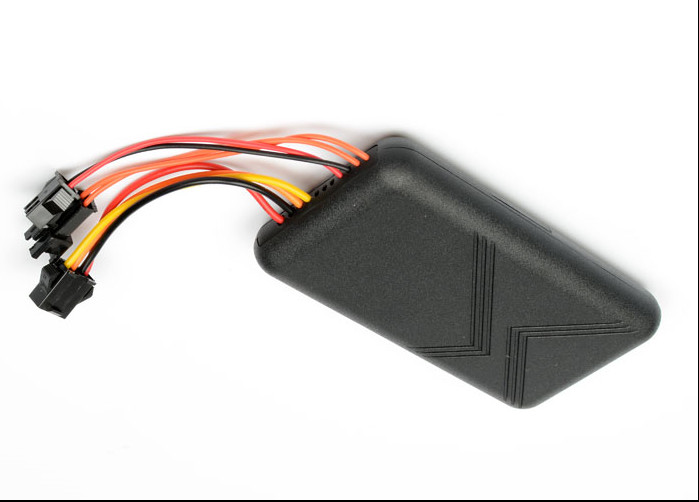

Detail Pictures:

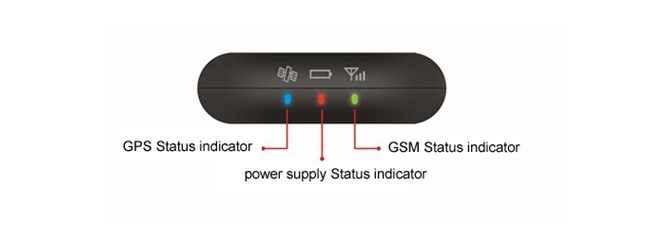

1 Red LED (Power/state)
| LED state | Meaning |
| Once a flash for 2 seconds | Working normally |
| Dark | Low power/Shut |
2.Yellow LED-GSM (Power/state)
| LED state | Meaning |
| Always light | GSM initialization |
| Flashing | GPRS working normally |
| Always dark | NO GSM signal |
3.Blue LED-GPS (Power/state)
| LED state | Meaning |
| Always light | GPS initialization |
| Flashing | GPS working normally |
| Always dark | NO GPS signal |
Applications :
1. Global positioning
2. Real-time monitoring
3. Vehicle locating
4. Timing tracking
5. Cutting off power and circuit by remote control
6. Vehicle rental / Fleet management etc
4s shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.

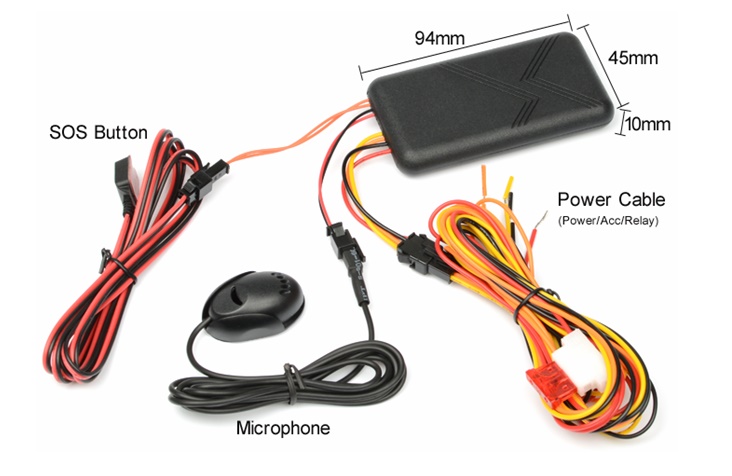

Accessories:
1. Power 4P line (standard accessory)
2. User manual (standard accessory)
3. SOS Alarm button cable (optional accessory)
4. Microphone (optional accessory)
5. Electric relay (optional accessory)
