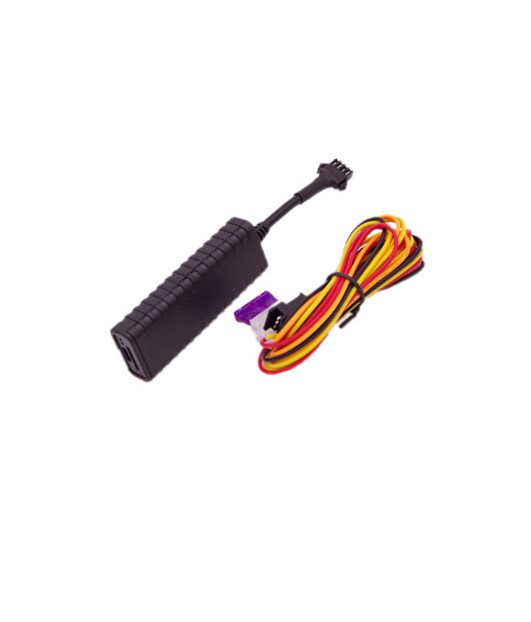

New Mini Size GPS Tracker Product With Plastic Shell And MTK GPS Module
Application Of GPS Tracker
- Fleet management and vehicle tracking
- Car service shops and car delears
- Insurance company
- Car rental company
- Taxi company
- Dropship company
- Project vehicle remote
Functions of GPS Tracking Device
- GPS Positioning Track Current Position according to the time interval you set.
- Playback Routes,you can choose one period within 3 months, then playback it.
- Setting Function Via SMS,device supports many SMS commands
- ACC Ignition Defection: Green line is ACC status detection line
- Burglar Alarm, when someone removes this device, there will power off alarm
- Vibration Alarm (Optional)
- Over Speed Alarm, you need to set one over speed command before you need this function.
- SOS Alarm (Optional)
- Remote Cut Off Engine
- Built-in GPS ,GSM Antenna
- Static State Drifting Protection, when it is static, GPS module will not receive new GPS signal.
- Over Voltage Protetion Of Car Battery Storage.
Details Parameters Of GPS Tracking Device
| Content | Specs. |
| Network | GSM/GPRS/2G |
| Band | 850MHz 900MHz 1800MHz 1900MHz |
| GPS Chip | MTK Chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | Generally less than 30meters |
| Time To First Fix | Cold Status 38seconds Warm Status 15seconds Hot Status 1second |
| Voltage input | Wide voltage input DC9-80V |
| Battery | Built-in 3.7V 140mAh Li-ion Rechargeable Battery |
| Storyage Temp | -40degrees to +85 degrees |
| Operation Temp | -20degrees to +55degrees |
| Humidity | 5%--95% non-condensing |
| Size | 90mm x 33mm x 15mm(L*W*H) |
| Weight | 65g ( Battery and Power cord Included ) |
LED Indicator
Yellow LED GSM
| LED Status | Meaning |
| Always light | GPRS signal Working normally |
| Flashing | GSM Module Initializaion |
| Always dark | No GSM Signal or sleep model |
Blue LED GPS
| LED Status | Meaning |
| Always Light | GPS signal is Working normally |
| Flashing | GPS module Initialization |
| Always Dark | No GPS Signal or Sleep model |
Installation
1. Please find the professional and technical person for installation
2. Please prepare one 2G GSM SIM Card and open GPRS function.
3. If you need the cut off engine function, you have to connect yellow line to one relay.
2. Pay attention to the following items
2.1 In order to avoid thieves damage,please select a hidden place to install
2.2 Not place with other emission source,such as reverse sensor, car alarm and other
vehicle communication device.
3. Use cable tie to fixed or use a wide strong double-sided tape to stick.
4. Device with built-in GSM Antenna and GPS antenna, so make sure the GPS antenna side should face to the sky.and without metal cover above the device.
